For MRI applications care must be taken to limit the amount of magnetically susceptible metal inside the MRI scanner. Particularly, if any screws are included for implant fixation, the use of ceramic material will limit the distortion caused to the MRI scan.

Therefore it is recommended to fix implants with ceramic screws. Thomas RECORDING offers a set of 5 different ceramic screws made of zirconium oxide. These screws were developed and firstly used by Prof. Dr. Nikos Logothetis at the Max Planck Institute for Biological Cybernetics in Tuebingen, Germany [1]. The ceramic screws were tested on MR quality control phantoms and were found to have no effects on the homogeneity of the B0 field of the magnet [1]. In addition the material was chosen to be tissue compatible and are surface roughened to optimize the bone and skin implant interface [1].

Thomas RECORDING is proud to be the worldwide sole distributor of these high quality ceramic screws. Our ceramic screws are used by leading neuroscientists all over the world (see a selection of related publications at the end of this page).

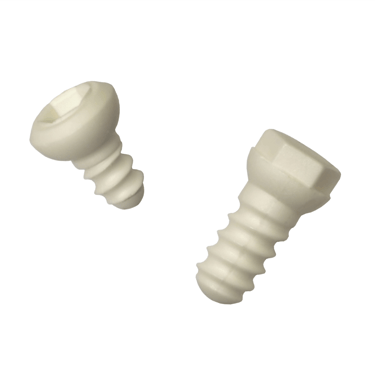

Product Description

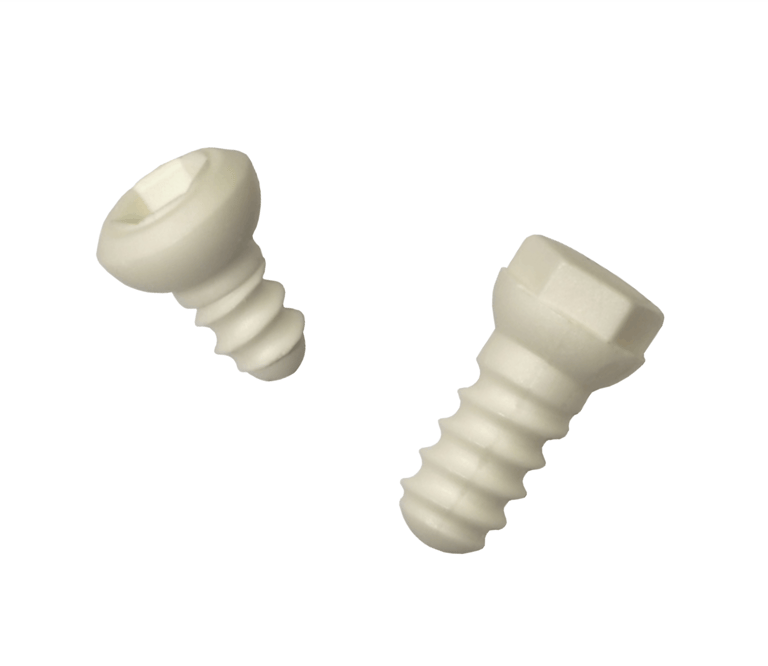

Key Features

• MRI-compatible screws

• Material: ceramic

• Two differend screw types

• SI screws

• SA screws

• Tools for the screws available

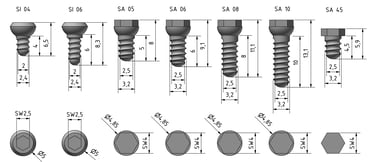

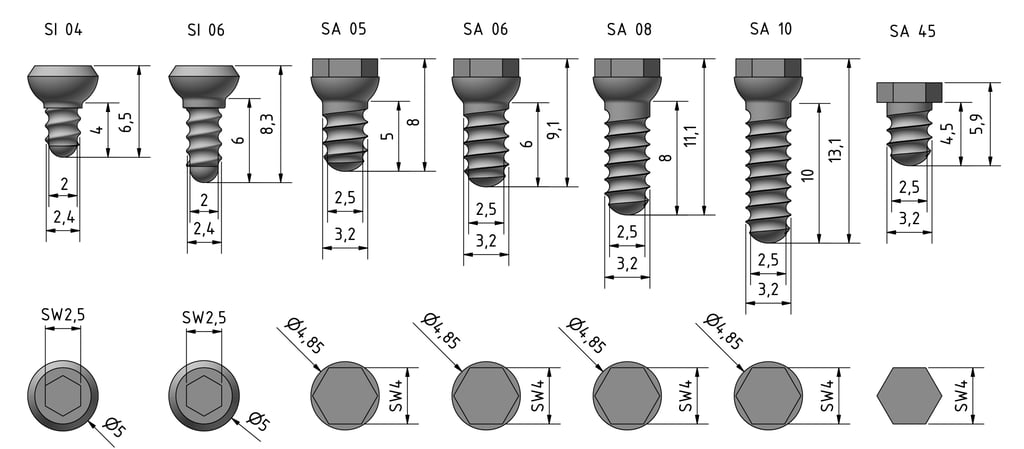

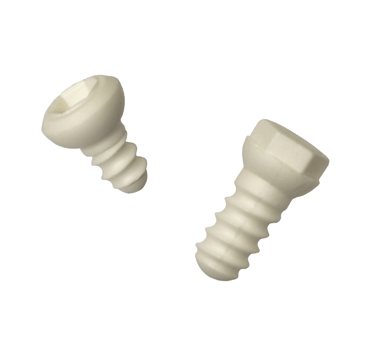

Ceramic Screw Type SI

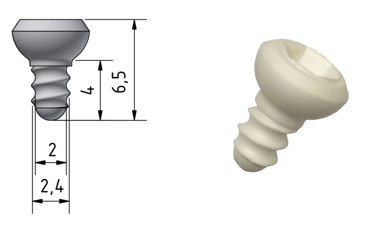

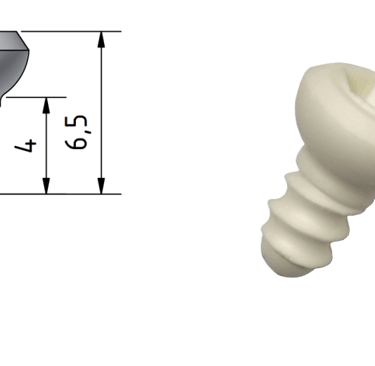

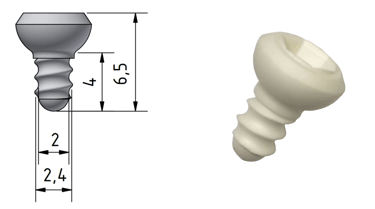

Screw type: SI04

Material: Zirconium oxide

Article number: AN000053

Thread length: 4 mm, total length: 6.5 mm

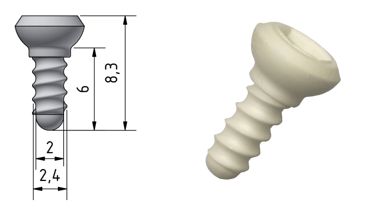

Screw type: SI06

Material: Zirconium oxide

Article number: AN000054

Thread length: 6 mm, total length: 8.3 mm

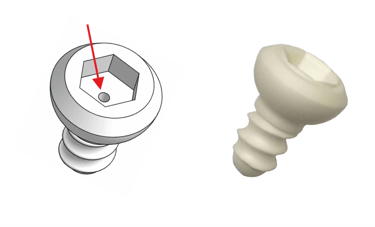

Screw type: SI04 Brain Port

Material: Zirconium oxide

Article number: AN001634

Ceramic screw type SI04 with center hole

Center hole diameter: app. 500 µm

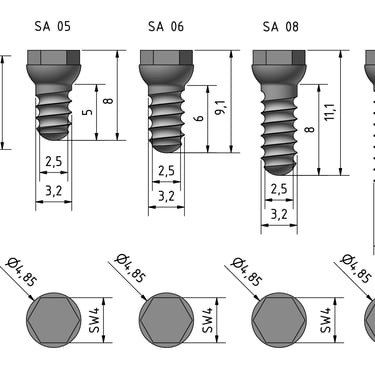

Ceramic Screw Type SA

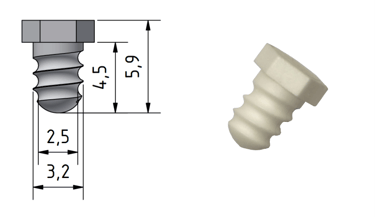

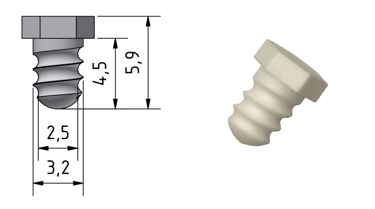

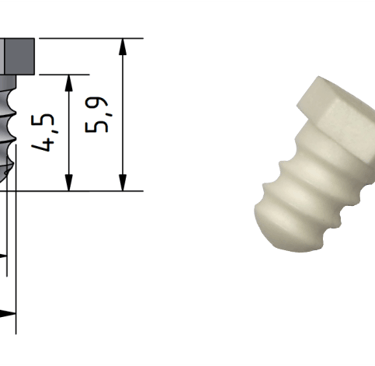

Screw type: SA45

Material: Zirconium oxide

Article number: AN000055

Thread length: 4.5 mm, total length: 5.9 mm

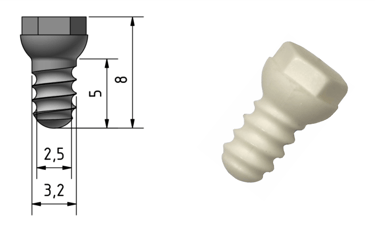

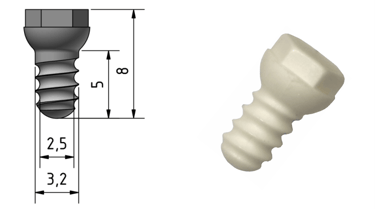

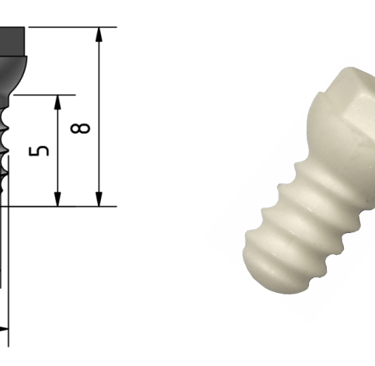

Screw type: SA05

Material: Zirconium oxide

Article number: AN000056

Thread length: 5.0 mm, total length: 8.0 mm

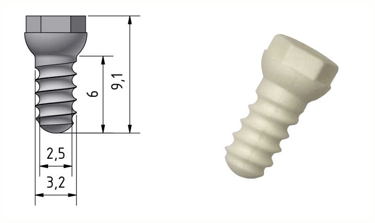

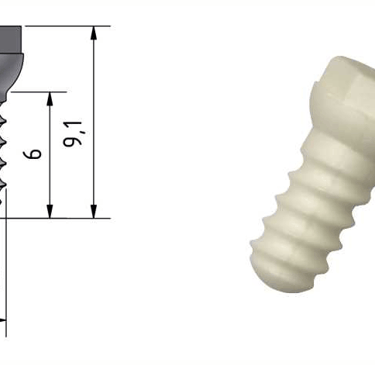

Screw type: SA06

Material: Zirconium oxide

Article number: AN000057

Thread length: 6.0 mm, total length: 9.1 mm

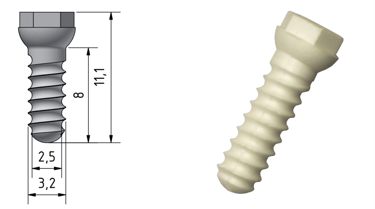

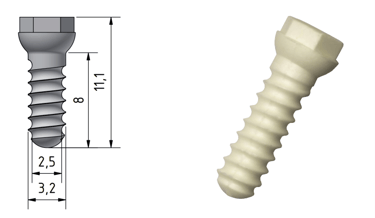

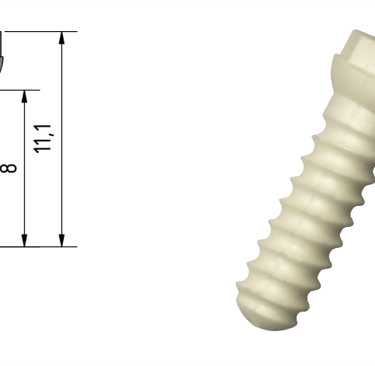

Screw type: SA08

Material: Zirconium oxide

Article number: AN000058

Thread length: 8.0 mm, total length: 11.1 mm

Screw type: SA10

Material: Zirconium oxide

Article number: AN000059

Thread length: 8.0 mm, total length: 11.1 mm

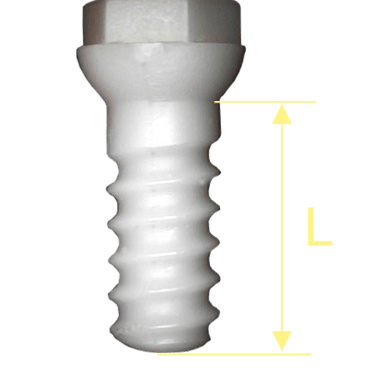

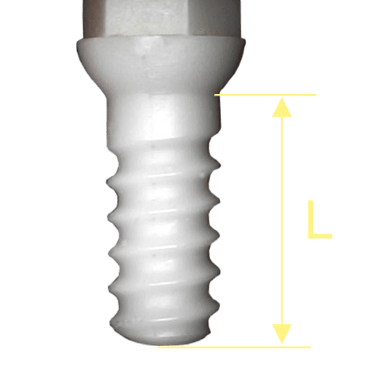

SA-Ceramic Screws with customized lengths

In addition to the SA type ceramic screws with fixed lengths shown above, we also offer custom shaft lengths for this screw type. The shaft length can be freely selected between L=4.5 mm and L=10 mm.

Please feel free to contact us so that we can offer a cusomized SA ceramic screw with the requested thread length (L) that meets the requirements of your application!

[1] Logothetis N., Guggenberger H., Peled S., Pauls J.
Functional imaging of the monkey brain
nature neuroscience, vol. 2 no. 6, June 1999

[2] Scherberger H., Fineman I., Musallam S., Dubowitz D.J., Bernheim K.A., Pesaran B., Corneil B.D., Gilliken B., Andersen R.A.
Magnetic resonance image-guided implantation of chronic recording electrodes in the macaque intraparietal sulcus
Journal of Neuroscience Methods 130 (2003) 1-8
